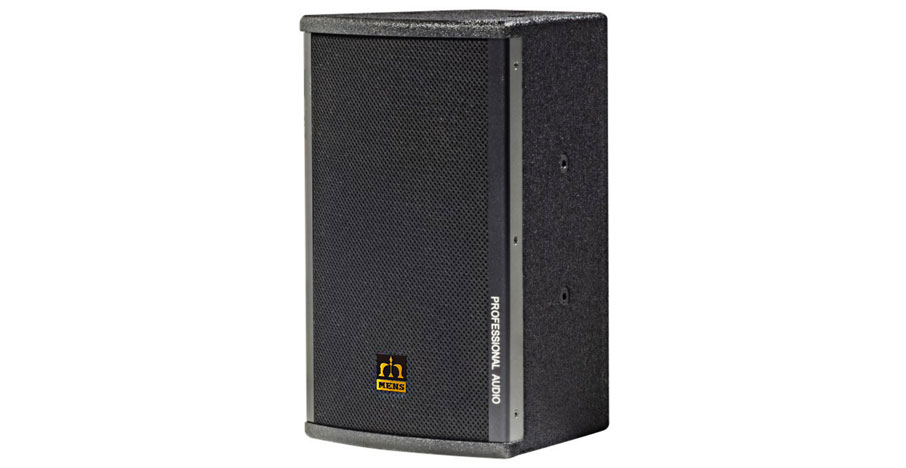

二分频音箱H-12

参数Technical Specifications Two-way full range speaker
频响范围Frequency Response 50Hz~20KHz(±3dB)45HZ~22KHZ(-10dB）
低音LOW/Mid Driver 12〞×1
高音HF Driver 3寸×1
功率Handling Power 450W(RMS)
阻抗lmpedance 8Ω
灵敏度Sensitivity 99dB
连续声压级Maximum Continuous SPL 126dB
最大声压级Maximum Peak SPL 132dB
扩散角Dispersion 100°Hor×100°Ver
板材Cabinet Construction 11-PLY BIRCH PLYWOOD
表面处理Cabinet Finish polyurethane coating
连接方式input/Output 2×NL4R Speakon
外型尺寸（mm)Cabinet Dimension(mm) W355×H580×L360
