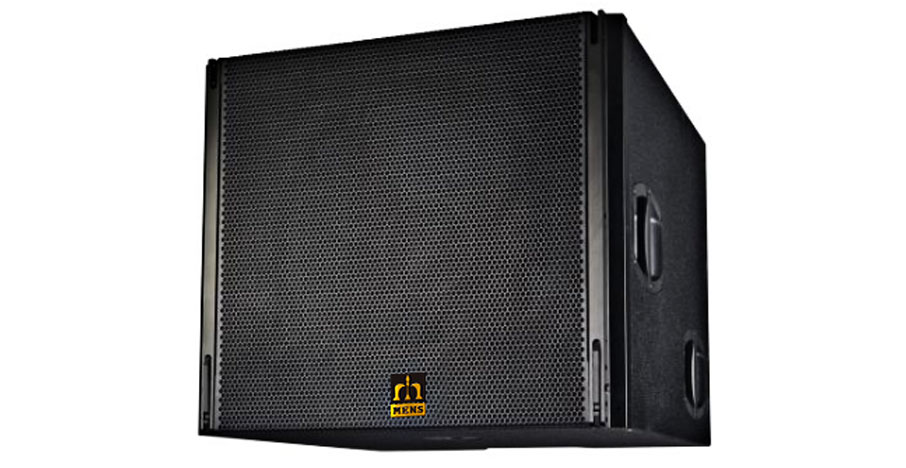

超低频音箱L-210B


参数Technical Specifications Sub bass line array speaker
频响范围Frequency Response 35Hz~300Hz(±3dB）32HZ~350HZ(-10dB)
低音LOW/Mid Driver 18"×1
功率Handling Power 1000W(RMS)
阻抗lmpedance 8Ω
灵敏度Sensitivity 100dB
连续声压级Maximum Continuous SPL 135dB
最大声压级Maximum Peak SPL 136dB
扩散角Dispersion 120°Hor×9°Ver
板材Cabinet Construction 11-PLY BIRCH PLYWOOD
表面处理Cabinet Finish polyurethane coating
连接方式input/Output  2×NL4R Speakon
外型尺寸（mm)Cabinet Dimension(mm) W700×H600×L630
重量Net Weight(kg) 38
